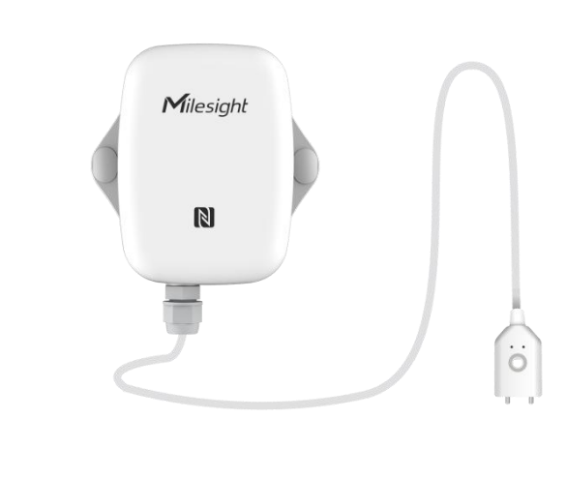

Spot Leak Detection Sensor - EM300-SLD

Description

Detect the presence of liquids by a small water probe and based on the conductive principle Embedded with temperature and humidity sensors for environment monitoring
Ultra-wide-distance transmission up to line of sight of 10km
IP67 UV-resistant and waterproof enclosure for harsh environment applications
Built-in 4000 mAh replaceable battery and works for more than 5 years without replacement
Store locally 3, 000 historical records and support retransmission to prevent data loss
Support Milesight D2D protocol to enable ultra-low latency and direct control without gateways
Equipped with NFC for easily configuration
Compliant with standard LoRaWAN gateways and network servers
Quick and easy managament with Milesight IoT Cloud solution

Monitored Parameters:

  • Water detection

    • Hazards:

  • Coastal flooding
  • Land and river flooding

    • ✓ Relevant to the EWSS

    €990.09

    Minimum Quantity : 1

    Quantity:
    Sensor Properties
    Accuracy (error of the measurements) Unit of measurement Data Refresh Time (mins) Wi-Fi Connection 4G Connection External Power Supply Documentation
    None true/false 10 True False True
    Reference Partners Project Name Project Year Reference Paper Minimum Purchase Spatial Density
    Oeiras CCLL 2024 Not available 1 None
    Purchase operations complexity Assembly/Calibration Operations Complexity Deployment operation Complexity Deployment Cost Data Analysis Operations Complexity
    Difficult Difficult High Easy
    Citizen Science Activities Complexity Assembly Public Involvement Deployment Public Involvement Data analysis Public Involvement Target Users
    Easy Limited - The components require some technical skills. Limited - The locations to install the sensor are not easily accessible. The sensors need fixing material. Easy - Data sensors will be available online for community use. Local authorities, Civil protection and public in general

    FAQs


    Regular preventive maintenance involves activities such as: a) regular visual inspections to avoid any obstructions or identify physical damage; b) cleaning activities of the sensor probe and its surroundings for any environmental factors (e.g. plants, insects, etc.); c) checking the batteries' status and replacing them as needed. Consult the manufacturer's documentation for accurate and product-specific maintenance guidelines.


    The sensor was designed to operate solely within a LoRa network. Therefore, the sensor may not be able to transmit data or alerts if it cannot connect to a LoRa gateway.


    Alerts are generated trough a central monitoring system and the users can receive alerts via email or mobile SMS.


    Additional pictures
